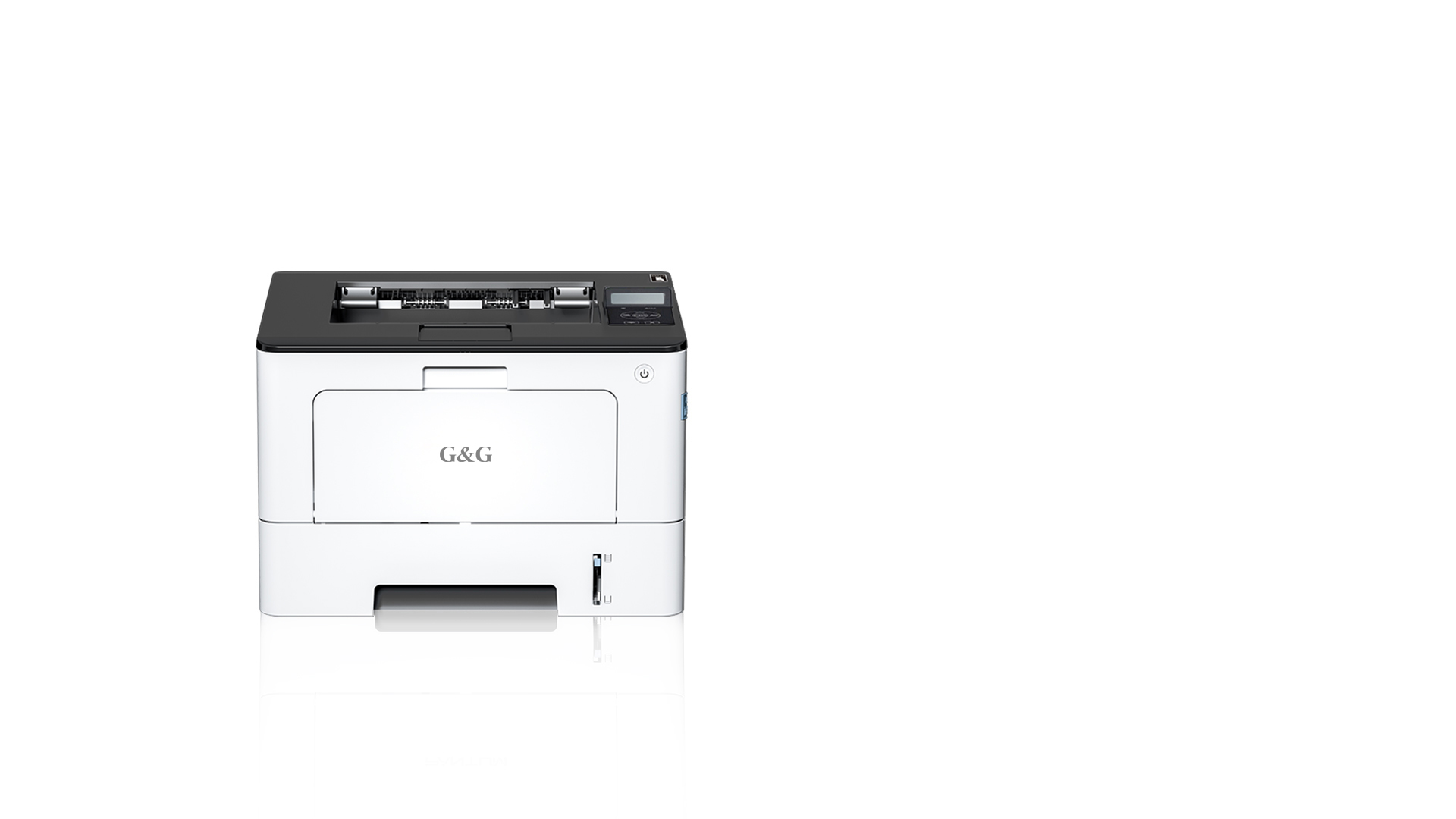

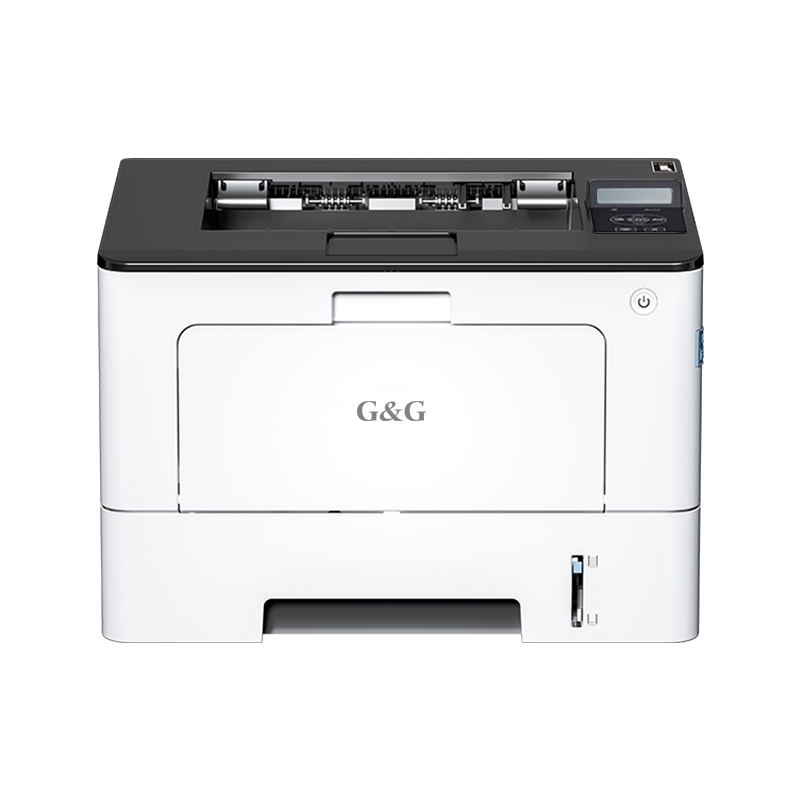

G&G GP4200DW Mono Laser Printer
Printing speed: 42ppm
Connection method: USB+NET+WIFI
Basic function: Print
Special function:
-Win10/Win11 systems support driverless installation
-Automatic duplex printing
-Metal frame inside
-2*550 pages optional paper tray
-Optional 15,000 pages toner cartridge
-Dual-band WiFi(2.4G/5G) support
Other Model:
Select a model
GM4210DW
FEATURES DETAILS CONSUMABLES DOWNLOAD DRIVER
GP4200DW
Faster Speed, Uncompromising Quality
Ceramic heating, quick start
The first print out time is less than 5.9s
Driverless Installation, Easy to Use
Win10/Win11 systems support driverless installation. The driver will be installed automatically when the printer is connected for the first time
Automatic Duplex Printing, High-efficiency Output
A4 printing speed is 42 pages per minute, and it supports automatic duplex printing, which can easily improve work efficiency
Convenient Mobile Printing with Bluetooth and Pantum App
Support AirPrint, Mopria™ Print Service, Wi-Fi direct connection, Bluetooth configuration (iOS 11.0~16.0/Android 6.0~12.0), and Pantum App, enabling users to enjoy wireless printing from various mobile devices

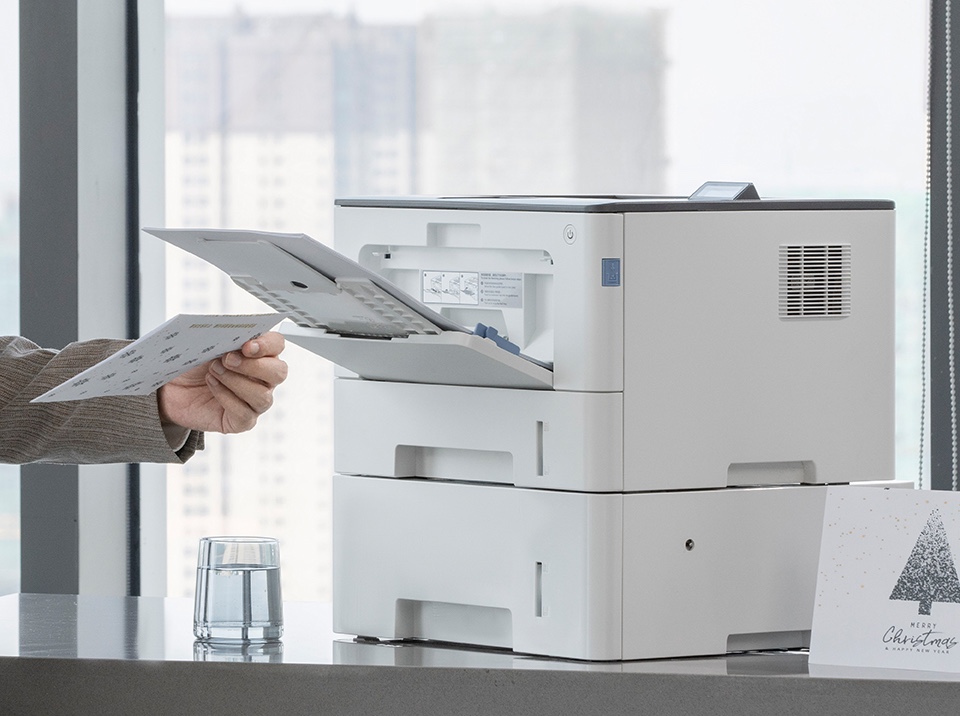

Powerful Paper Input Tray, Supports Continuous Printing
A standard 250-page standard paper input tray, a 60-page multipurpose paper input tray and optional 2 * 550-page optional paper input trays enable the printer’s maximum input tray capacity up to 1,410 pages, easily meeting continuous and high-volume printing needs
Product Spec
Model
ModelGP4200DW
Print
Print Speed42ppm(A4)
44ppm(Letter)
Duplex print speed20spm(A4)
First Print out time≤5.9s
Printer languagePCL5e、PCL6、PS、GDI
Duplex printingAuto
U-disk printNo
Mobile printAirPrint, Mopria™ Print Service, Mopria Scan, APP print (iOS App / android App)
Operating system compatibilityMicrosoft Windows:
Server2008/Server2012/Server2016/2019/2022/XP/Win7/Win8/Win8.1/Win10/win11(32/64 bit)
Mac OS:10.10~14.3
Linux Ubuntu 16.04/18.04/20.04/22.04/24.04/
Debian 10.0/Centos 7(32/64 bit,intel Processor);
Astra Linux Special Edition V1.6/Redhat 8.2.0/ Centos 8.2(64 bit,intel Processor)
Android:8.0 and later
iOSAPP:iOS 13 and later
HarmonyAPP:support HarmonyOS 2-4、HarmonyOS NEXT
Paper handling
Paper input traystandard input tray:250 pages;
Multipurpose input tray:60 pages;
Optional tray:550 pages (Maximum:2);
Max input tray:1,410 pages
Paper output tray150 pages
Paper output full dectationYes
AccessoryPT-511H (Optional tray 550 Pages -Maximum:2)
Media type1. Automatic paper feeder: plain paper, thick paper, transparent film, thin paper, recycled paper
2. Multi-purpose paper feeder: plain paper, thick paper, card paper, label paper, envelope, thin paper, extra thick paper
3. Optional paper tray: plain paper, thick paper, thin paper
Media sizeA4, A5, JIS B5, IS0 B5, A6, Letter, Legal, Executive, Folio, Oficio,
Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Minimum support ed size: 80mm x 148mm
Maximum support ed size: 216mm x 356mm
Media weightMedia weight input tray:60-120g/㎡
Multipurpose tray:60-200g/㎡
Optional tray:60-120g/㎡
General
Control panel2 line LCD
Processor speed1.2G Hz
Memory1GB
Hard discNO
Recommended Monthly Duty Cycle750 to 4,000 pages
Maximum Monthly Duty Cycle100,000 pages
InterfaceHigh-speed USB 2.0; IEEE 802.3 10/100/1000Base-Tx; WiFi (2.4G/5G): IEEE 802.11a/b/g/n+Bluetooth; USB interface: front USB HOST (1), rear USB DEV (1);Bluetooth interface
Input voltage110V: AC110-127V, 50/60Hz, 12A
220V: AC220-240V, 50/60Hz,6.5A
Power consumptionprint average:≤650W
ready:≤8W
sleep:≤1.4W
shutdown ≤0.5W
Energy Star standardsEnergy Star 3.2
NoiseReady:≤30dB(A);
Print:≤56dB(A);
Scan:≤56dB(A) ;
Copy:≤57dB(A) ;
Mute printing:≤50dB(A)
Operating EnvironmentRecommended temperature:10~32℃
basic used temperature:5~35℃
Humidity range:20% ~ 80%
Altitude:≤3000m
Consumable
Consumable TypeToner Cartridge & Drum Unit
Starter cartridge(1)TL-*5225 (3,000 pages)
Starter drum unitDL-*5225 (30,000 pages)
Standard CartridgeTL-*5225(3,000 pages)
TL-*5220H (6,000 pages)
TL-*5220X (15,000 pages)
Standard drum unitDL-*5225(30,000 pages)
